Factory Outlets Speed Hydraulic Swing Motor Slew Drive

Product Description:

IWYHG Series hydraulic slewing are applied to slewing platform drives in a wide spectrum of applications, including construction vehicles, crawler excavators, aerial platforms, and other tracked vehicles.  This series slewing can bear hydraulic and external load impact.  They feature high working pressure, good stability and compact configuration.  Plus, they are easy to install and maintain.  Learn about various this series slewing by saving the data sheet for your interests.


  • Payment Terms: L/C,D/A,D/P,T/T
  • Our crew through skilled training. Skilled expert knowledge, solid sense of service, to meet the service needs of customers for Factory Outlets Speed Hydraulic Swing Motor Slew Drive, We have been prepared to offer you the top suggestions on the designs of one’s orders in a professional way if you need. During the meantime, we retain on developing new technologies and building new designs so as for making you ahead within the line of this business.
    Our crew through skilled training. Skilled expert knowledge, solid sense of service, to meet the service needs of customers for Hydraulic Slewing Drives, Hydraulic Swing Motor Slew Drive, Speed Hydraulic Slewing Drives, Our company always provides good quality and reasonable price for our customers. In our efforts, we already have many shops in Guangzhou and our products have won praise from customers worldwide. Our mission has always been simple: To delight our customers with best quality hair items and deliver on time. Welcome new and old customers to contact us for the future long term business relationships.
    Mechanical Configuration:

    IWHG44A hydraulic slewing consists of hydraulic motor, multi-stage planetary gearbox, brake and valve block with brake function.   Customized modifications for your device are available at any moment.

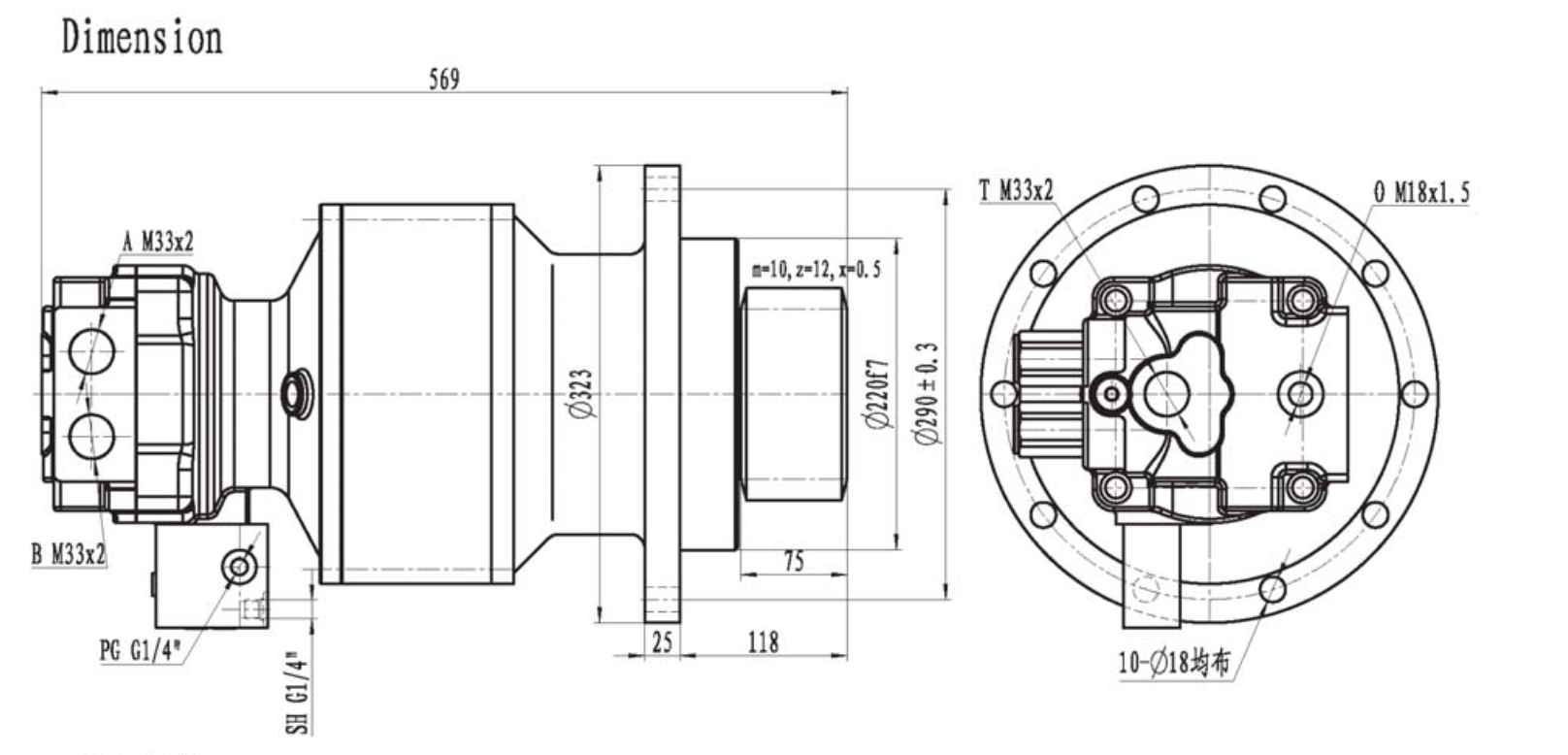

    Main Parameters of IWYHG44A Hydraulic Slewing Device:

    Output Torque(N.m)

    Speed(rpm)

    Ratio

    Rated Pressure(Mpa)

    Displacement(ml/r)

    Motor Displacement(ml/r)

    Weight(Kg)

    Excavator Type(Ton)

    4000

    0-100

    18.4

    26

    1192.9

    64.832

    90

    14-16
